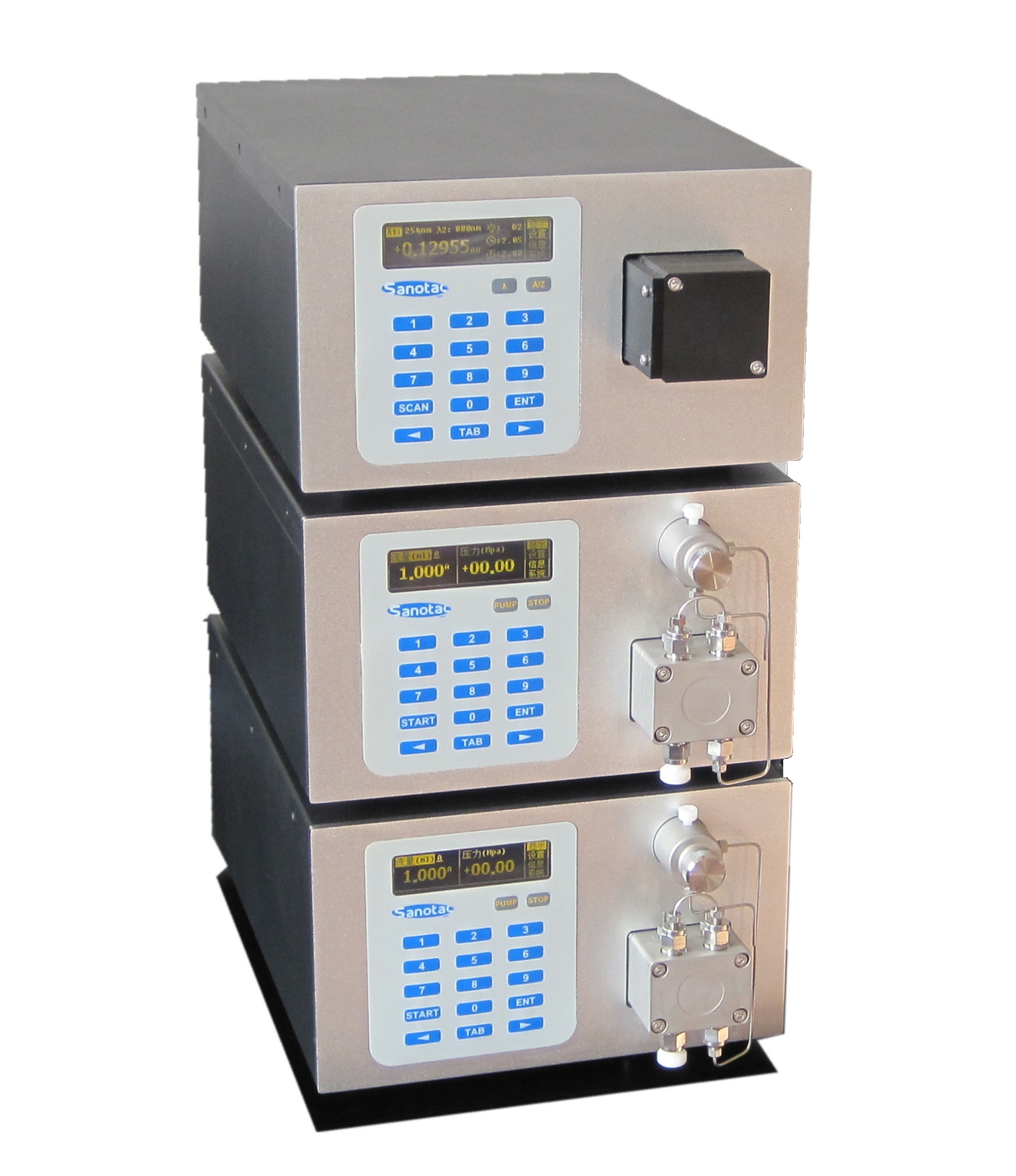

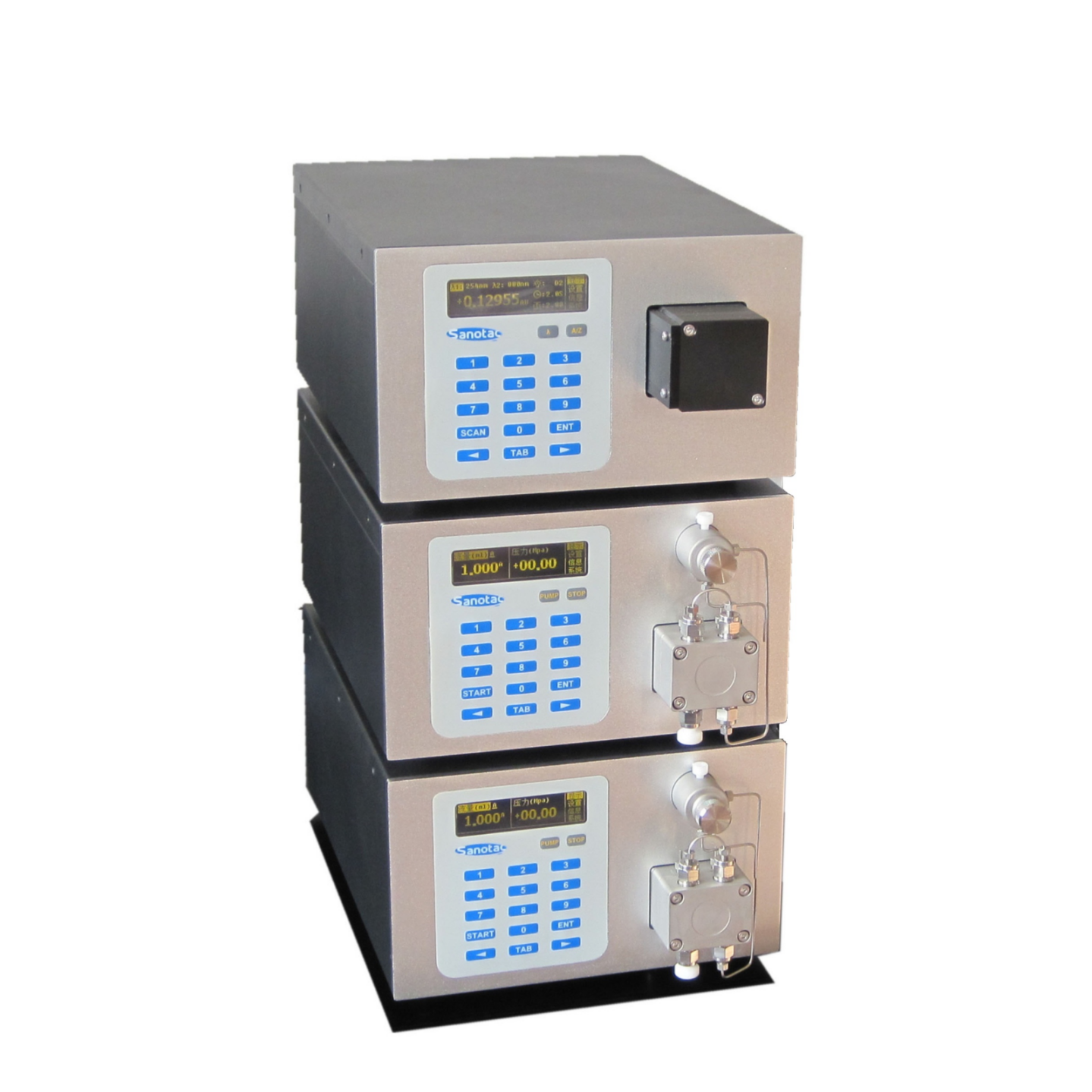

Analytical HPLC System Pilot 10

     The Pilot 10 High Performance Liquid Chromatography (HPLC) system is a next-generation instrument launched by Shanghai Sanotac Scientific Instruments Co., Ltd. It is equipped with a high-pressure constant-flow pump, a UV-Vis detector, a manual injection valve, and a fully reverse-controlled chromatographic data workstation. The system features dual-wavelength detection, an independent mode design, and a two-solvent delivery system, making it well-suited for a wide range of complex gradient applications. It offers high-throughput analytical performance and excellent biocompatibility. Its advanced technology and reliable quality have been highly recognized by the market.

Feature：

Cam curve compensation reduces flow pulsation and keeps baseline noise low；

Multi-point flow calibration ensures accurate and reproducible flow across the full range；

Pump head auto-wash prevents buffer salt residue and crystallization；

Dual-wavelength detection (190–800 nm) for online analysis；

Easy lamp and flow cell replacement; deuterium and tungsten lamps switch automatically；

Supports optional detectors: UV-VIS, ELSD, RI, and more；

Flow path materials available: 316L stainless steel, PEEK, titanium, and Hastelloy；

Software compliant with CFDA GXP and FDA 21 CFR Part 11；

Database-based project management; all methods and data stored under each project；

Full audit trail and user permission management.

Technical Specifications:
